$120.00
For most 13″-42″ LED, LCD Flat Panel TVs
Description

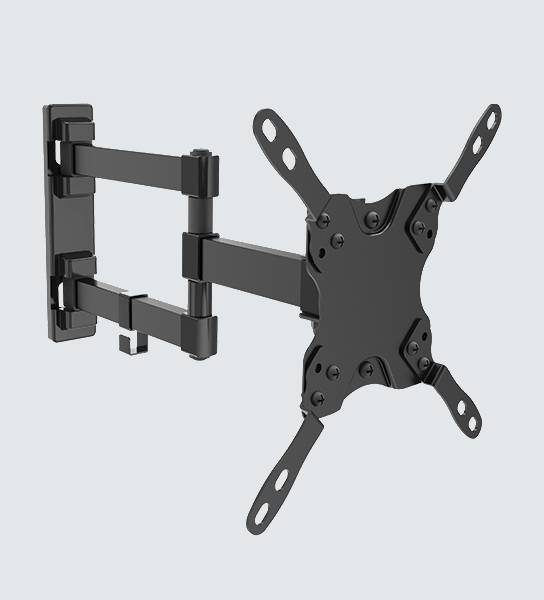

The LDA21-223 is a full-motion wall mount for most 13”-42” LED, LCD flat panel TVs up to 20Kgs/44lbs. It allows smooth, effortless tilt motion that makes it easy to reduce glare and find the perfect TV angle at any height. Full motion allows maximum flexibility — extend, tilt and swivel your TV up to 360mm from the wall in every direction for easy viewing from any seat in a room. This pre-assembled arm comes complete with cable clips and decorative covers to ensure an elegant and tidy look. Its built-in level adjustment offers 3° clockwise and counterclockwise turning to ensure it is perfectly level. Compatible with VESA hole up to 200×200.
FEATURES
Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Leveling adjustments: allow TV to be perfectly positioned after hanging
Cable Management: keeps everything organized
Direction Indicator: assures correct installation
Detachable VESA Plate Design: enables easy installation
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Economy |
| Material | Steel,Plastic |
| Metal Sheet Thickness | Wall Panel 2.5mm,connection 2mm (Wall Panel 0.098",connection 0.079") |
| Pipe Size | 30x15x1.5mm,25x15x1.5mm (1.2"x0.59"x0.059",0.98"x0.59"x0.059") |
| Surface Finish | Powder Coating |
| Color | Matte Black |

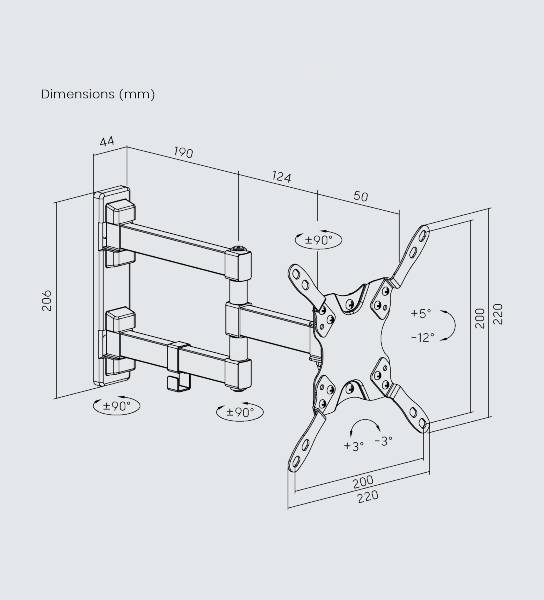

| Dimensions | 364x220x220mm (14.3"x8.7"x8.7") |
| Fit Screen Size | 13"-42" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA Only |
| VESA Compatible | 75×75,100×100,200×100,200×200 |
| Max. Mounting Hole | 200×200 |
| Weight Capacity | 20kg (44lbs) |
| Strength Tested | 2 Times Approved |
| Profile | 60~364mm (2.4"~14.3") |
| Tilt Range | +5°~-12° |
| Swivel Range | +90°~-90° |
| Screen Level | +3°~-3° |
| Screen Freely Tilting | Yes |
| Installation | Solid Wall,Single Stud |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Accessory Kit Package | Normal/Ziplock Polybag, Compartment Polybag |
| Cable Management | Yes |
| Anti-theft | No |
